With the workshop grinding machines with built-in extraction, the working dust is effectively extracted using a protected process.
The extraction unit is installed in the stand of the machine. A water filter and a plastic upstream and downstream filter (also built into the stand) filter the dust.
Not suitable for aluminium processing!
Product features
- Three-phase current or alternating current grinding machine
- Very sturdy steel construction
The exceptionally stable machine design ensures vibration-free operation even at maximum performance and thus a long service life. - Occupational safety
The dust which is often generated during grinding and which is hazardous to health is extracted directly at the point of origin by the extraction system and thus contributes to healthy working conditions at the workplace. - Overcurrent and overvoltage protection
All workshop grinding machines with suction are equipped with overcurrent and overvoltage protection. In addition, a triple lockable padlock is fitted as standard. - Accessories
A wide range of accessories can be supplied as an option for the respective application. - Security
The safety of the grinding machine is important to us and is constantly monitored. This is also reflected in the CE marking of every grinding machine. - CE Conformity
Legal conformity is a matter of course for us and has just as high a priority as the long-term, targeted and high manufacturing quality of our products.
Technical data
| Type | Power [ in kW ] | Current type | Dimensions disc D x B x Hole [ in mm ] | Spindle- Speed [ in 1/min ] | Weight [ in kg ] |
|---|---|---|---|---|---|
| DS 04 / 175 A | 0,25 | three-phase current | 175 x 25 x 51 | 2.900 | 83 |
| DS 07 / 200 A | 0,5 | three-phase current | 200 x 25 x 51 | 2.900 | 95 |
| DS 12 / 200 A | 0,9 | three-phase current | 200 x 32 x 51 | 2.900 | 108 |
| DS 12 / 250 A | 0,73 | three-phase current | 250 x 32 x 51 | 1.450 | 115 |
| DS 15 / 300 A | 1,1 | three-phase current | 300 x 40 x 76 | 1.450 | 160 |
| DS 25 / 300 A | 1,8 | three-phase current | 300 x 40 x 76 | 1.450 | 195 |

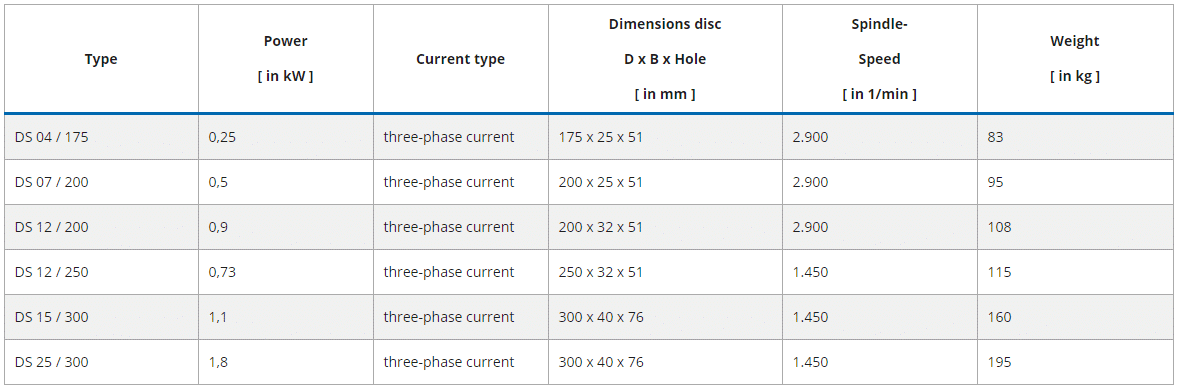

Technical data
(Tabelle anklicken zum Vergrößern)
