The compact class of the DUSTOMAT series was designed for the extraction of dust and chips in a variety of work areas. The dust is extracted through existing connections on the processing machine or with other suitable extraction elements such as extraction arms and hoods. High performance fans can capture and extract even large “clouds of dust” with ease.
Cleanable cartridge filters ensure a filter system with a long service life and low operating costs. The patented tilt-back mechanism of the filter housing allows convenient disposal of the collected dust.
Advantages
- Low operating costs resulting from cleanable long life filter cartridges
- Mobility combined with high extraction performance
- Tilt-back filter housings for easy dust disposal
- Suitable for most types of dust
- Optional test certificate for specialized applications
Applications
- Dust extraction of individual machines and manual work stations
- Pourable dust types – including hazardous types of dust
Machine models
DUSTOMAT FAPI-10 and FAPI-15
The best selling compact dust collector
- For small and medium sized processing machines with intake connection with a diameter up to 100 mm.
- Tested for the woodworking industry as industrial vacuum with floor cleaning kit.
DUSTOMAT FAPI-16 M
Especially designed for the stone industry and for carbide metal dusts
- For the extraction of hazardous dust types, especially mineral dust.
- Equipped with airflow pressure gauge and acoustic horn, as well as manual pneumatic filter cleaner and Jet-cleaner.
DUSTOMAT FAPI-10
DUSTOMAT FAPI-15
DUSTOMAT FAPI-16 M with extraction arm
Certificate of conformity:
DUSTOMAT FAPI-10 und FAPI-15
DUSTOMAT FAPI-10 und FAPI-15
Certificate of conformity:
DUSTOMAT FAPI-16 M
DUSTOMAT FAPI-16 M
Technical data
| Type | DUSTOMAT FAPI-10 | DUSTOMAT FAPI-15 | DUSTOMAT FAPI-16 M | |
|---|---|---|---|---|
| Max. Air flow | m³/h | 720 | 720 | 1.140 |
| Connection diameter | mm | 100 | 100 | 125 |
| Max. Low pressur | Pa | 2.800 | 2.800 | 2.000 |
| Connection voltage | V | 230/400 | 230/400 | 230/400 |
| Motor | kW | 1,3/1,1* | 1,3/1,1* | 1,3/1,1* |
| Filter surface area | m² | 3,5 | 3,5 | 9,4 |
| Dust container | litres | 100 | 100 | 45 |
| Dimensions (L/W/H) | mm | 1.165 x 530 x 1.636 | 1.320 x 530 x 1.757 | 1.150 x 670 x 1.470 |
| Weight | kg | 65 | 65 | 110 |
| Sound pressure level | dB(A) | 70 | 70 | 71 |
| Manual filter cleaning 230V | X | --- | --- | |
| Pneumatic filter cleaning 230V | --- | X | X | |
| Manuel filter cleaning 400V | X | --- | --- | |
| Pneumatic filter cleaning 400V | --- | X | X | |
| Jet-cleaner | --- | --- | X | |

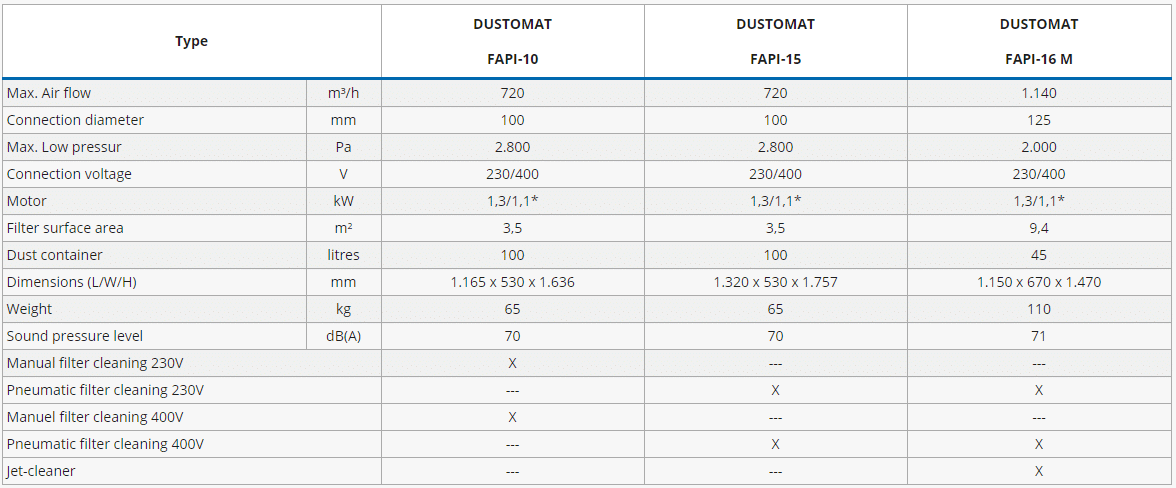

Technical data
(click table to enlarge)
