These series impresses above all due to the versatility, easy handling, sturdy construction and functional design. The surface belt grinding machine for dry grinding is universally applicable for each grinding task. Machines with belt width of 100 mm, 200 mm or 300 mm are available.
Not suitable for aluminium processing!
Product features
- Extremely sturdy machine construction
Sturdy machine construction ensures vibration-free operation and as a result, a long service life even at high output. - Model: table or model: pedestal
Choice between the more favourable model: table or the sturdy model: pedestal. - Adjustable surface grinding table
The surface grinding table can be adjusted as desired from horizontal to vertical. - Connection for extraction system
Connecting pieces at the surface belt grinding machine for connection at an extraction system are standard. - Wide range of accessories
Closed protective edge cases in order to capture dust better, a swiveling surface grinding table (angle table) from -10° to +45°, an additional angle stop with milled T-groove are included in the comprehensive range of accessories. - Safety
The safety of the grinding machines is important to us and is constantly reviewed. This is confirmed by the CE certification of every grinding machine. Built-in belt guard plates as protection against accidental contact are for example standard equipment on the surface belt grinding machines. - CE-conformity
Complying with legal requirements is a matter of course for us and has as much priority as the high quality of our production based on the durability and funtionality of our products.
Technical data
| Type | BS 75 | BS 200 | BS 300 |
|---|---|---|---|
| Motor output | 0,55 kW / 0,7 kW | 1,8 kW / 2,2 kW | 3,0 kW |
| Speed | 1.450 / 2.900 1/min | 1.450 / 2.900 1/min | 1.450 1/min |
| Belt speed | 8 m/s; 16 m/s | 8 m/s; 16 m/s | 8 m/s; 16 m/s |
| Roller-Ø | 100 mm | 132 mm | 200 mm |
| Belt dimensions | 100 x 950 mm | 200 x 1.500 mm | 300 x 2.000 mm |
| Exhaust con-Ø | 75 mm | 100 mm | 150 mm |

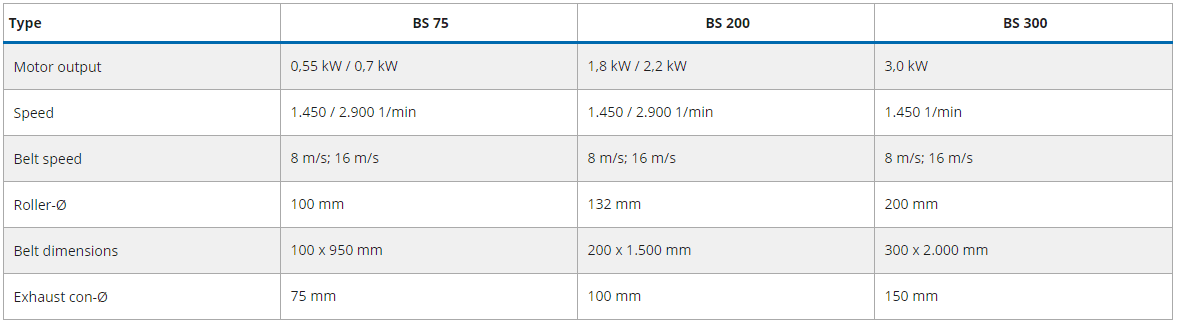

Technical data
(click table to enlarge)
